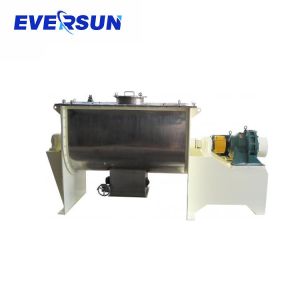

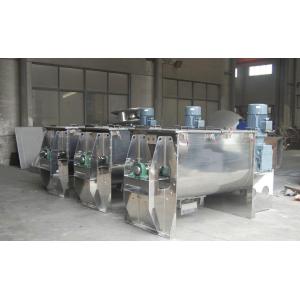

Eversun horizontal ribbon blender is widely used in chemical, food,
and pharmaceuticals,construction line.
It can be used to mix powder with powder, powder with liquid, and
powder with granule.
Under the driven of motor, the double ribbon agitator mix the
material quickly.
The outer ribbon push the material from the two ends to the centre,
inner ribbon push the material from center
to the two ends.Thus to achieve material convention.The discharging
port is set in the bottom centre, with the help
completely, and no dead zone.
Material can be carbon steel, manganese steel, ss304, 316L and
321; besides, different
material can also be used in combination. Surface treatment for
stainless steel include sandblasting, wiredrawing, polishing,
mirror polishing, all can be used in different parts of a mixer
2.The driven unit
Options for motor: general motors, explosion-proof motors, variable
frequency motor, high efficiency and energy saving motor. Commonly
used reducers: R-series, K-series, and F-series gear box; cycloidal
reducer, universal gear reducer, planetary gear reducer.
Commonly motor-gearbox connection: direct connection, pulley
connection, hydraulic coupler connection.
3.High efficiency mixing unit
Different main shaft agitators can be equipped according to the
properties of raw materials.
The main shaft agitator could be: inner and outer ribbon, paddle
and ribbon, disconnected ribbon, and shaver-shaped agitator.
4.Excellent discharging unit
The drive types of valve are Manual, pneumatic, and electric.
Valves for consideration: powder spherical valve, cylinder valve,
plum-blossom dislocation valve, butterfly valve, rotary valve etc.
5.Various inlets
Various inlets on the top cover of the barrel can be designed
according to different situations.
They can be used as man hole, cleaning door, feeding hole, vent,
and dust colleting hole.
The top cover can be designed as fully-opened lid for easy
cleaning.
6.Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like
steam coil jacket, honeycomb pressure jacket, medium circulation
jacket
sampling valve, high speed chopper, temperature sensor, weighing
system, dust removal system and so on.
Different heat medium requires different jacket, it can be used for
heating and cooling, while, the temperature should be within 250
Celsius degree.
Our Team & Service
Basis service
1.Your sample material can be free analysis in our laboratory.
2.24 hours a week online & quick response within 12 hours.
3.Booking hotel and ticket for customers and Free transportation
during visit our factory.
4. Production lead time and delivery time guaranteed.
Customized services
1.Professional R & D team to develop the new products as you
requirements.
2.Help high-end customers to develop the local market
3.All packing and shipping can customized as per your requirements.
After-sale services
After customers received the goods,if have any questions or quality
problems, Our customer service Dept. will be always available.
