Features and Advantages
Easy to repace screen and parts
Using a special grid structure design, the screens and parts can be
easily changed and tighten.
High capacity and Friendly working space
With excellent structuer of machine and motors, the output is very
high and working noise is low.
High sieving precision
The material has a long stroke on the screen surface, high
screening precision and large processing capacity.
Movable screening process
At the same time of screening, the material has been transported
over long distances.
Working Principle
The motor through a vee belt makes the eccentric of the activator
start high-speed rotation.The operation of the eccentric block
generates a lot of centrifugal force, stimulate the screen forming
a certain amplitude circle movement. Materials on the tilted
screen surface do continuous throwing movement after receiving the
impulse given by the sieving box. During the process of
collision of materials and sifter, the grain which is less than the
screen hole will be chosen so as to realize the grading.
Technical Parameter
| Model | Screen Specification(mm) | Layers | Mesh Size(mm) | Particle Size(mm) | Vibrating Frequency(r/min) | Double Amplitude(mm) | Power(KW) |
| EZYS-525 | 500X2500 | 1-6 | 0.074-10 | 0.06-15 | 960,1450 | 4-8 | 2X0.4,2X0.75 |
| EZYS-1020 | 1000X2000 | 1-6 | 0.074-10 | 0.07-20 | 960 | 4-8 | 2X0.75,2X1.5 |
| EZYS-1025 | 1000X2000 | 1-6 | 0.074-10 | 0.07-15 | 960,1450 | 5-8 | 2X0.4,2X0.75 |
| EZYS-830 | 800X3000 | 1-6 | 0.074-10 | 0.1-20 | 960 | 5-8 | 2X0.75,2X1.5 |
| Machine can be customized based on your need |
FAQ
1.How is the quality of your products?
Our products are manufactured strictly according to national and
international standard, and we take a test
on every machine before delivery.
2.How about price?
we are factory and be able to give you the best price with good
quality, and we have a policy that “ for saving
time and absolutely honest business attitude,we quote as low as
possible for any customer, and discount can
be given according to quantity”.
3.Service and Payment Terms?
A. We usually accept T/T, L/C;
B.We take pictures of finished products before delivery.
Application

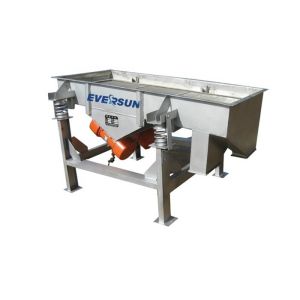

EVERSUN linear screens are running in various production
lines:chemical,food,ceramic,pharmaceutical,mineral,
plastic,metallurgy,food,etc.and its durability has been fully
verified.
Our Service
1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.
