Linear Vibrating Screen
Product description
Linear screening is the "main force" of industrial screening
operations and is indispensable in many production scenarios. It is
structured as a whole cuboid, compact and orderly structure, mainly
composed of screen box, vibration motor, shock absorber and screen.
When working, the vibration motor outputs the exciting force and
pushes the screen box to do reciprocating linear motion. After the
material enters the screen box from the feed port, it is driven by
the vibration force and jumps forward on the screen surface. Due to
the different screen size, the material smaller than the screen
hole quickly passes through the screen and falls, and the large
particle material continues to move forward to the discharge port
to complete the accurate screening. It has high screening accuracy,
strong processing capacity, stable operation, simple operation and
maintenance, and is widely used in mining, chemical, food and other
industries, which greatly improves production efficiency.
Working principle
The working principle of the linear screen is based on the
operation of the vibrating motor. After the vibration motor is
energized, the internal eccentric block rotates at high speed,
because the eccentric block's center of gravity deviates from the
center of the motor shaft, generating a strong centrifugal force,
which causes the motor vibration, and transmits this vibration
force to the screen box. The screen box is connected with the frame
by a shock absorber such as a spring. Under the action of exciting
force, the screen box moves in a reciprocating straight line in a
given direction. The material enters the screen box from the feed
port. Under the influence of vibration force, it jumps on the
screen surface and moves towards the discharge port. Due to the
difference in the size of the screen, the material smaller than the
size of the screen is separated through the screen during the
jumping process, and the material larger than the screen continues
to move to the discharge port to achieve efficient screening of
materials of different particle sizes.
Product features
1. Efficient screening: The linear motion of the screen surface
enables the material to pass quickly and the processing capacity is
large, while the multi-layer screen design can achieve
high-precision screening and accurately separate materials of
different particle sizes.
2. Stable operation: solid structure, reliable quality of key
components, the use of advanced vibration technology, can ensure
long-term stable operation of equipment, low incidence of failure.
3. Wide range of application: can be used in a variety of
industries, dry, wet, viscous and other different characteristics
of granular, powdered materials can be effectively screened.
4. Easy maintenance: the connection of each component is easy to
disassemble and install, and the replacement of vulnerable parts
such as screens and springs is easy, which can reduce maintenance
costs and downtime.
5. Environmental protection and energy saving: usually take shock
absorption and sealing measures, low noise, less dust, in line with
environmental requirements, and vibration motor energy consumption
is relatively low, more energy saving.
Product parameter
| Model | Layer | Screening
Area(mm) | Mesh size(mm) | Particle
Size(mm) | Capacity(t/h) | Power
(kw) | Double Amplitude(mm) |
|
| DZSF-612 | 1 to 5 | 600*1200 | 0.02-20 | ≤20 | ≤3 | 0.37×2 | 6 to 10 |
| DZSF-520 | 1 to 5 | 500*2000 | 0.02-20 | ≤20 | ≤5 | 0.37×2 | 6 to 10 |
| DZSF-525 | 1 to 5 | 500*2500 | 0.02-20 | ≤20 | ≤8 | 0.37×2 | 6 to 10 |
| DZSF-1020 | 1 to 5 | 1000*2000 | 0.02-20 | ≤20 | ≤12 | 0.75×2 | 6 to 10 |
| DZSF-1025 | 1 to 5 | 1000*2500 | 0.02-20 | ≤20 | ≤16 | 0.75×2 | 6 to 10 |
| DZSF-1030 | 1 to 5 | 1000*3000 | 0.02-20 | ≤20 | ≤20 | 1.1×2 | 6 to 10 |
| DZSF-1224 | 1 to 5 | 1200*2400 | 0.02-20 | ≤20 | ≤23 | 1.5×2 | 6 to 10 |
| DZSF-1525 | 1 to 5 | 1500*2500 | 0.02-20 | ≤20 | ≤28 | 1.5×2 | 6 to 10 |
| DZSF-1530 | 1 to 5 | 1500*3000 | 0.02-20 | ≤20 | ≤32 | 2.2×2 | 6 to 10 |
Product details

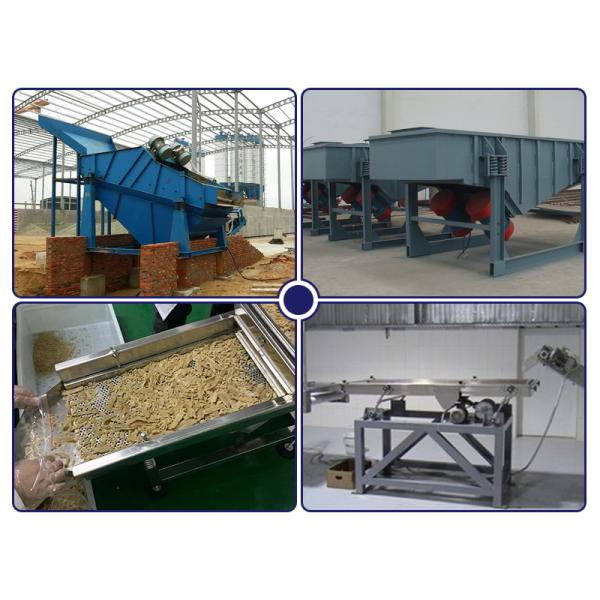

Product shows
Application
Packaging & Shipping
Why Choose us
About us
