Three-dimensional Mixer
Product Description
The 3D mixer is a device that achieves uniform mixing of materials
through three-dimensional spatial movement. Its unique dual-axis or
multi-axis structure drives the container to perform compound
movements such as tumbling, translation and rotation, causing the
materials to continuously undergo mixing processes such as
diffusion, convection and shearing inside the cylinder. It can
efficiently handle materials of different forms such as powder and
granules, and is widely used in the chemical, food, pharmaceutical
and other industries. It features high uniformity of mixing, no
dead corners, low energy consumption and convenient operation.
Working Principle
The 3D mixer drives the mixing container to perform a compound
motion of tumbling, translation and rotation in three-dimensional
space through dual or multiple axes, allowing the materials to
continuously undergo physical effects such as diffusion, convection
and shearing inside the cylinder. With its unique three-dimensional
spiral motion trajectory, it breaks the mixing dead corners,
enabling the powder, granules and other materials to achieve
efficient and uniform mixing without the interference of gravity.
It is widely applicable to scenarios with high requirements for
mixing accuracy in fields such as chemical engineering, medicine,
and food, and has the advantages of low energy consumption,
convenient operation, and high uniformity of mixing.
Characteristics & Advantages
1. High uniformity of mixing: Three-dimensional movement has no
dead corners, with a uniformity of over 99%, making it suitable for
high-precision scenarios.
2. Wide adaptability to materials: It can handle powders, granules,
fibers, etc., and has a good effect on sticky/agglomerated
materials.
3. Low wear and pollution: Smooth movement, sealed design, and
compliance with cleanliness standards.
4. Low energy consumption and maintenance: With low rotational
speed and simple structure, energy consumption is reduced by 30% to
50%.
5. Flexible operation: Adjustable parameters, supports automatic
control, and is suitable for multiple scenarios.
Product Parameter
| Model | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-10
00 | SYH-12
00 | SYH-15
00 | SYH-20
00 |
| Total volume(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| Effective volume(L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
Maximum loading
weight (kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 366-648 | 400-810 | 500-1080 |
Spindle speed
(r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| Motor power(kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
Overall dimension
(mm) | 600*
1000*
1000 | 800*
1200*
1000 | 1150*
1400*
1000 | 1250*
1800*
1550 | 1450*
2000*
1550 | 1650*
2200*
1550 | 1850*
2500*
1750 | 2100*
2650*
2000 | 2150*
2800*
2100 | 2000*
3000*
2260 | 2300
*3200*
2500 | 2500*
3500*
2800 |
| Weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
| More sizes can be customize |

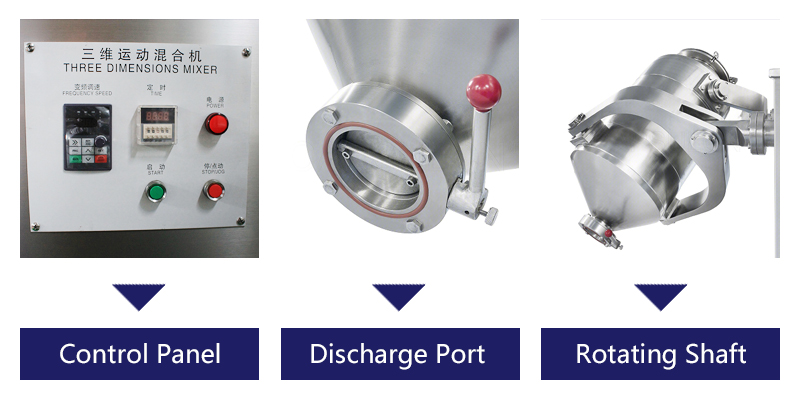

Detail display
