Conical mixer

Product Description
The conical mixer is a mixing equipment specially designed for powder and granular materials. Its main body is conical in shape and is equipped with single or double helical stirring components inside. During operation, the screw rotates at high speed, lifting the material at the bottom of the cone along the outer wall of the screw to the top of the cone and then scattering it. This forms a unidirectional mixing path of vertical circulation and radial diffusion inside the cylinder, achieving uniform dispersion of the material. The equipment has a simple structure, lower energy consumption, and the materials are less likely to be damaged during gentle stirring.

Working Principle
When the cylinder of the conical mixer is fixed, it relies on the high-speed rotation of the internal spiral components to lift the material at the bottom of the cone along the outer wall of the spiral to the top of the cone. Due to the centrifugal force and gravity, the material is scattered in all directions, forming a vertical cycle of "lifting - scattering - falling back". Meanwhile, the scattering process drives the material to radially diffuse, colliding and blending with the surrounding materials. By taking advantage of the triple effects of shearing, diffusion and convection, a three-dimensional mixing field is constructed inside the cylinder, achieving efficient and uniform mixing of powder and granular materials. The structure is simple, with low energy consumption and easy cleaning and maintenance.

Product features
1. High-efficiency unidirectional mixing: Through the high-speed rotation of the spiral component, the material is lifted from the bottom of the cone to the top for scattering, forming a unidirectional mixing path of vertical circulation and radial diffusion, with a mixing uniformity of over 99%.
2. Gentle handling of materials: The mixing process is smooth, and the impact force and shearing force on the materials are small. It is suitable for handling fragile particles and heat-sensitive materials, reducing material damage.
3. Simple and energy-saving structure: The design without cylinder rotation simplifies the mechanical structure and reduces the number of failure points. Energy consumption is reduced by 20% to 40% compared with traditional models, and the operating cost is low.
4. Convenient unloading and cleaning: The large diameter discharge port at the bottom of the conical cylinder enables the material to be quickly discharged by gravity. The internal structure is simple. The screw is close to the cylinder wall to reduce residue. The mirror polishing treatment is convenient for disassembly and cleaning, and it complies with GMP standards.
5. Strong material adaptability: It can handle powder and granular materials with large differences in density and particle size, effectively overcome the problem of stratification, and at the same time break up materials that are prone to agglomeration.
6. Low-noise and stable operation: The equipment operates with low noise, runs smoothly, and reduces interference with the working environment, making it suitable for long-term continuous operation.

Product Parameters

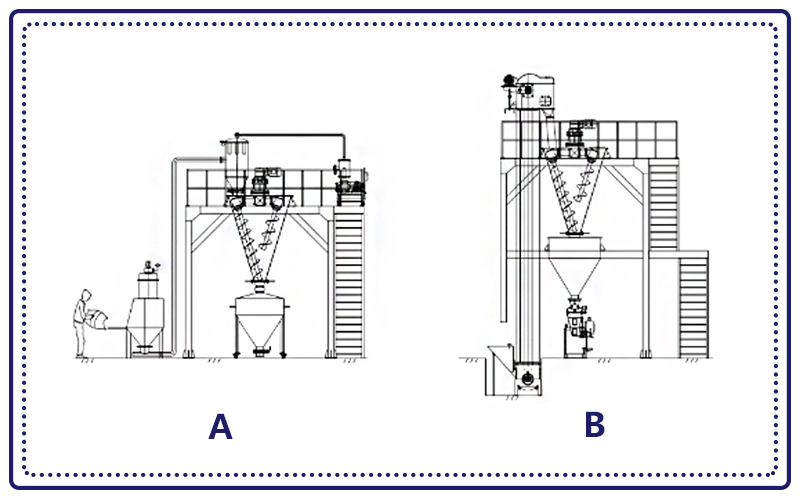

Production line schematic diagram
Configuration A: Manual feeding to the feeding station → Vacuum feeder suction feeding → mixing → mobile silo.

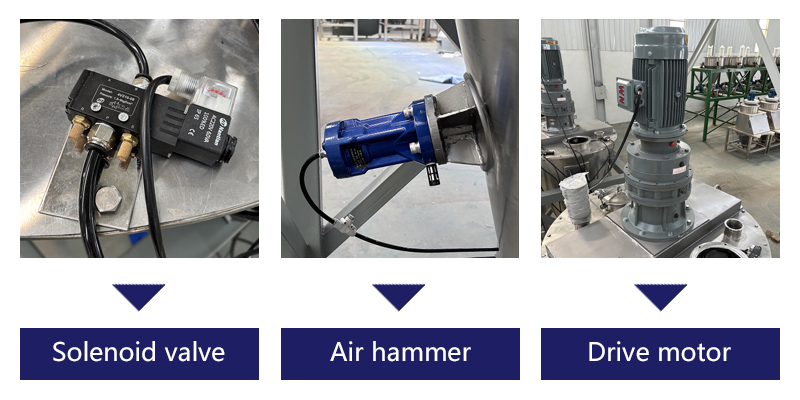

Details Lmages




Product Shows


Packing & Delivery

Why Choose Us
